- Data Sheet
|
Combines reliable full-pipe flow measurement with low-cost, compact size and ease of installation.

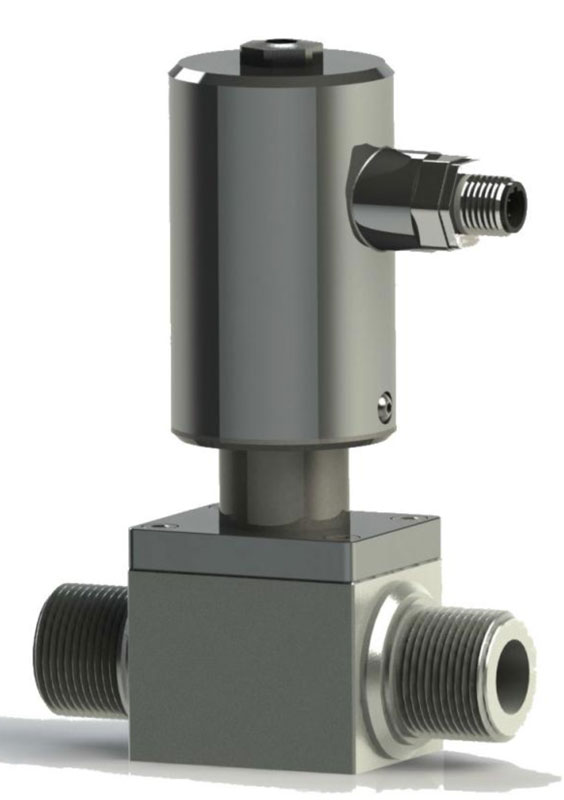

Small diameter insertion electromagnetic flow meter.
CS3900 FEATURES
CONVERTER
- Power 10-30VDC (1W)
- Interface: 5 Pin connector with plug
- Configuration via PC
- Eeprom program storage
- Pulse and Analog 4-20mA outputs (opt)
- Capability to measure the process temperature on analog output
SENSOR
- Compact flow meter with integrated sensor and converter
- Sensor body in galvanized zinc steel, PTFE coated or 304 SS (up to 1") with 316 SS electrodes
- Available sizes 1/2" to 2"
- NPT process connections
- Suitable for flow control where flow might need to be controlled according to the temperature such as cooling systems on tooling machines, washing systems, etc.
|
