- Data Sheet
|

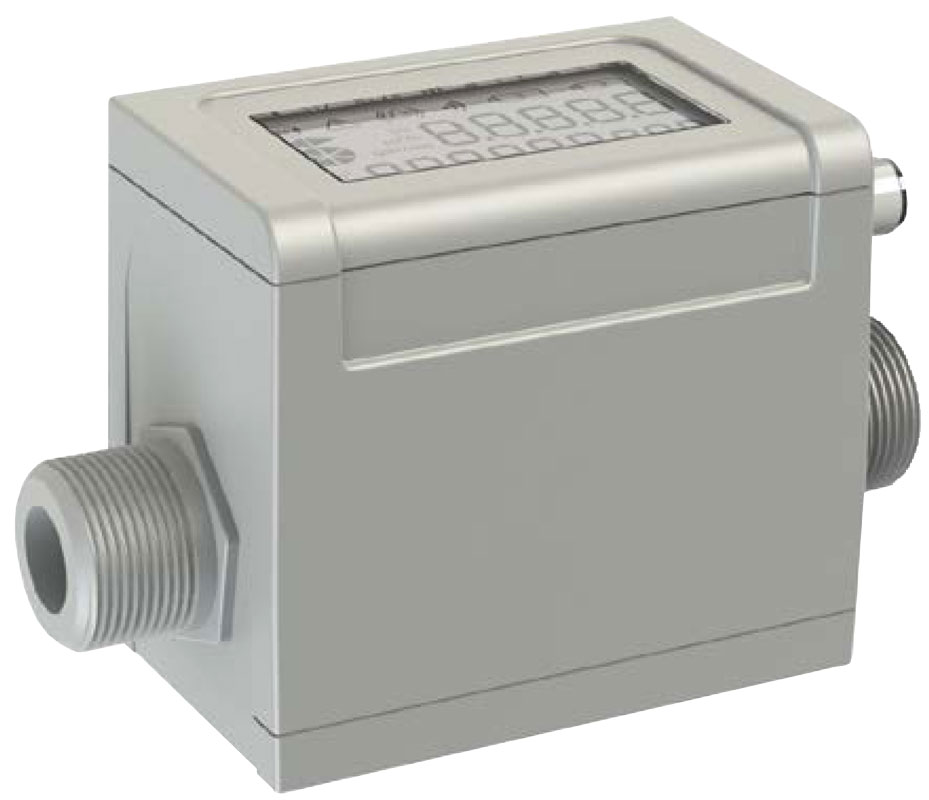

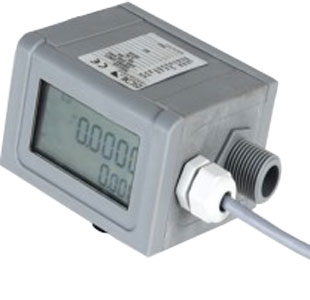

CS8100 Compact Flow Meter
FEATURES
- Small electromagnetic flow meter with integrated display.
- Suitable for flow measurement in liquids with a minimum conductivity of 20 µS/cm.
- Measuring accuracy ± 1% of reading.
- Housing in Noryl reinforced with 30% fiberglass.
- Protection rating NEMA 6 (IP 67)
- Max liquid temperature 185°F
- Power supply 18-30 VDC
- Digital and analog outputs can be configured via PC, using dedicated MCP software.
|
