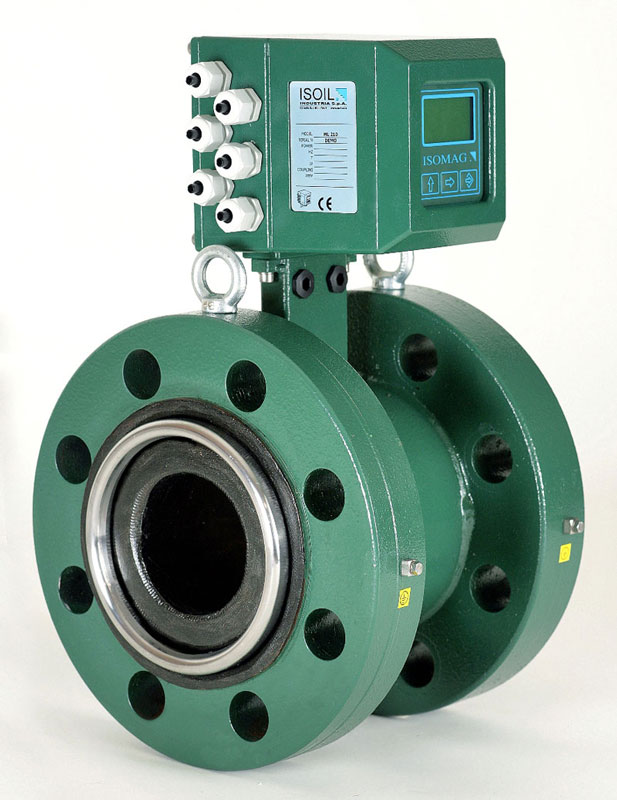

MS2500 FLANGED ELECTROMAGNETIC FLOW SENSOR

  - Data Sheet


The MS2500 flow meter combines reliable full-pipe flow measurement with high accuracy, low cost and ease of installation.

The MS 2500 flanged sensor are well suited for all application and flow ranges. The MS2500 is available in the widest range of diameters.

FEATURES

  • Accuracy to +/-0.2% of rate from 1 to 33 ft/sec.
  • Nineteen sizes from 1" to 48" Pipe Diameters.
  • Flow ranges from 2.37 to 179,400 GPM.
  • Pressures to 5600 PSI.
  • Volumetric flow rate measurement independent of fluid viscosity, density and temperature.
  • No moving parts for zero maintenance.
  • Bi-directional flow measurement.
  • No pressure drop through sensor.
  • Standard integral ground electrode.
  • Minimal straight pipe run required.
  • Every sensor is factory wet-calibrated.

Several converters for control and interfacing are available for this flow sensor. Click here for more information.
