- Data Sheet
|

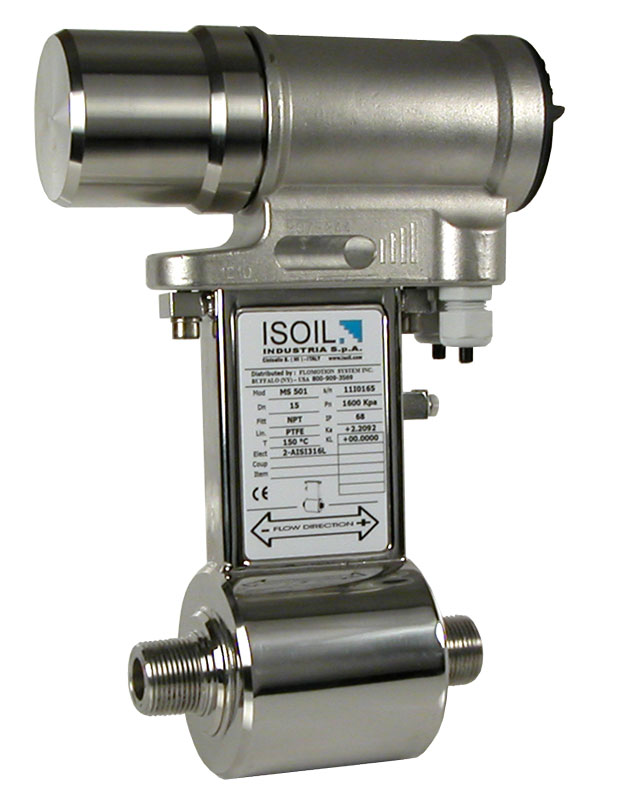

The MS501 flowmeter with ML4-F1 Converter is designed for demanding rapid-filling. batching and dispensing applications.
MS501/ML4-F1 FEATURES
- High sampling rate (400 samples/second) for short duration flows.
- Accuracy to +/-0.2%.
- Lower cost than flanged units.
- Six sizes from .125" to .75" Pipe Diameters.
- Flow ranges from 0.34 to 49.84 GPM.
- Standard Pressure: 230 PSI.
- Volumetric flow rate measurement independent of fluid viscosity, density and temperature.
- No moving parts for zero maintenance.
- Wide range of process connection types; threaded, flanged, tri-clamp or compression.
- Bi-directional flow measurement.
- No pressure drop through sensor.
- Minimal straight pipe run required.
- Every sensor is factory wet-calibrated.
Several converters for control and interfacing are available for this flow sensor. Click here for more information. |
