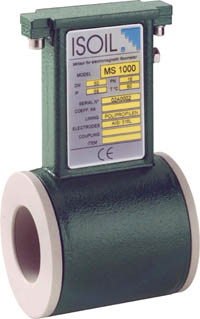

MS1000 Wafer Electromagnetic Flowmeter

The MS1000 Flowmeter combines reliable full-pipe flow measurement with high accuracy, low cost and ease of installation.

Flomotion Systems  Model 501 Electromagnetic FlowmeterModel HS300 Electromagnetic Batching Flowmeter
MS1000
  • Accuracy to ±0.2% of rate from 3 to 33 ft/sec.
  • Lower cost than flanged units.
  • Eleven sizes from 1" to 16" Pipe Diameters.
  • Flow ranges from 2.37 to 19,934 GPM.
  • Standard Pressure: 230 PSI.
  • Volumetric flow rate measurement independent of fluid viscosity, density and temperature.
  • No moving parts for zero maintenance.
  • Bi-directional flow measurement.
  • No pressure drop through sensor.
  • Optional Integral ground electrode eliminates grounding rings with plastic piping systems.
  • Minimal straight pipe run required.
  • Every sensor is factory wet-calibrated.

    FIND OUT MORE

TYPICAL INDUSTRY PRODUCT APPLICATIONS

  • Water
  • Polymers
  • Wastewater
  • Lime Slurries
  • Dyes
  • Process Chemicals
  • Caustics
  • Slurries
  • Acids
  • Starches


SENSOR SIZES AND CAPACITIES

Sensor Size
1"
1.5"
2"
3"
4"
Minimum flow rate
(GPM @ 1 ft/sec)
2.37
6.08
9.49
24.30
37.97
Maximum flow rate
(GPM @ 33 ft/sec)
77.9
199.3
311.5
797.4
1246

Sensor Size
6"
8"
10"
12"
14"
16"
Minimum flow rate
(GPM @ 1 ft/sec)
85.44
151.9
237.3
341.8
465.2
607.6
Maximum flow rate
(GPM @ 33 ft/sec)
2803
4984
7787
11,213
15,262
19,934
