MS4000 Hazardous Area Electromagnetic Flowmeter

Hazardous area full-pipe flow measurement with high accuracy, ease of installation and low operating cost.

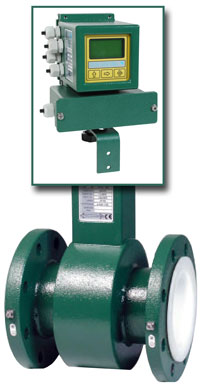

Flomotion Systems Model 4000 Explostion Proof Electromagnetic Flow Meter
MS4000
  • Accuracy to ±0.4% of rate from 3 to 33 ft/sec.
  • Nineteen sizes from 1" to 12" Pipe Diameters.
  • Flow ranges from 0.034 to 11213 GPM.
  • Standard Pressure: 230 PSI.
  • Volumetric flow rate measurement independent of fluid viscosity, density and temperature.
  • No moving parts for zero maintenance.
  • Bi-directional flow measurement.
  • No pressure drop through sensor.
  • Optional Integral ground electrode eliminates grounding rings with plastic piping systems.
  • Minimal straight pipe run required.
  • Every sensor is factory wet-calibrated.

    FIND OUT MORE

TYPICAL PRODUCT APPLICATIONS

  • Water
  • Polymers
  • Wastewater
  • Lime Slurries
  • Dyes
  • Process Chemicals
  • Caustics
  • Slurries
  • Acids
  • Starches
  • Paper Stock
  • Concrete


SENSOR SIZES AND CAPACITIES
Sensor Size
Minimum flow rate
(GPM @ 1 ft/sec)
Maximum flow rate
(GPM @ 33 ft/sec)
1/8"
0.034
1.12
1/4"

0.14
4.49
3/8"
0.38
12.46
1/2"
0.85
28.03
3/4"
1.52
49.84
1"
2.37
77.90
1.5"
6.08
199.3
2"
9.49
311.5
3"
24.30
797.4
4"
37.97
1246
6"
85.44
2803
8"
151.9
4984
10"
237.3
7787
12"
341.8
11213

ML400SA Converter
Mounts outside of
the hazardous area
on a wall or panel
ML400SA FEATURES
Wall or Panel Mounting
(for remote use in safe area)
Three Key Keypad
LCD Display
Backlight
4-20mA Output (opt)
Two Assignable Outputs; Pulse, Frequency, Alarm
Empty Pipe Detection
Interface via RS485, RS232, PC or Hand Terminal
Available Power Supply: 90-265 VAC, 10-63VDC/15-45VAC or 10-35VDC

Available Enclosures: Aluminum, NEMA 6X, Intrinsically Safe
