- Data Sheet
|

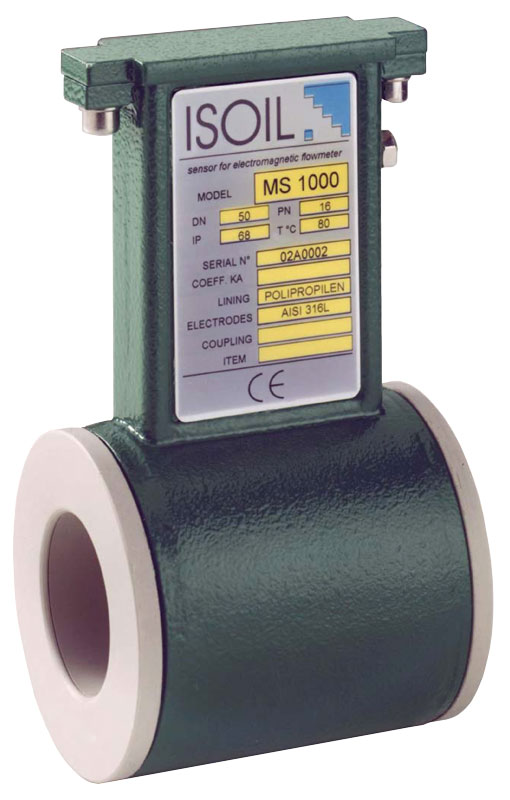

The MS1000 Flowmeter combines reliable full-pipe flow measurement with high accuracy, low cost and ease of installation.
MS1000 FEATURES
- Accuracy to +/-0.2%
- Lower cost than flanged units.
- Twelve sizes from 1/2" to 16" Pipe Diameters.
- Flow ranges from 0.85 to 19,934 GPM.
- Pressure: 230 psi (PP or Ebonite Liner), 580 PSI (PTFE Liner).
- Volumetric flow rate measurement independent of fluid viscosity, density and temperature.
- No moving parts for zero maintenance.
- Bi-directional flow measurement.
- No pressure drop through sensor.
- Standard integral ground electrode.
- Minimal straight pipe run required.
- Every sensor is factory wet-calibrated.
Several converters for control and interfacing are available for this flow sensor. Click here for more information. |
